Manufacturer of sugar screens for continuous centrifuges in the sugar industry

Veco is a pioneer in the fabrication of nickel sugar screens by electroforming for continuous centrifuges in the sugar industry.

Compare the specifications of the different ranges

Our range of working screens for continuous centrifuges

Veco is a world leader in the area of high performance sugar screens for sugar production.

We make three ranges of sheets available for the continuous spinners in sugar factories.

Discover our different ranges of sugar screens

We work continually to improve and develop our range of products in order to give your company, a competitive advantage.

Veco France offers three large ranges of working screens for continuous sugar centrifuge (commonly called "spinner sheets":

  • The VecoStandard range for current applications
  • The VecoFlux and VecoFlux-Special for higher throughputs and/or lower purity molasses
  • The VecoLife range for extended service lifetime

These three ranges respond to all your needs and exceed the required standards for quality.



The electroforming process used for the fabrication of sugar screens provides a perfectly smooth (mirror smooth) working surface, without burrs or bumps. The tapered cross-section of the slits reduced fouling and clogging.

The openings (slits) are radially aligned in their length, in multiple arc segments in order to ensure maximum separation of the crystals without damaging them during their path to the top of the centrifuge basket.



Whether you are looking for sugar screens with higher yield (greater mass throughput of massecuite), less pure final molasses (i.e. less rich in sugar, therefore, less sugar loss) or reduced maintenance costs (fewer production stoppages for changing sheets), Veco is the best choice.

The technical specifications of our sugar screens - Comparison of the products of our ranges

Types of sieves Density of slits Slit size mm Open % Thickness in mm
VecoStandard A 40/10 0.04 x 1.66 4.2 0.31
  40/10 0.06 x 1.67 6.4 0.29
  40/10 0.09 x 1.69 9.6 0.28
VecoStandard B 36/9 0.04 x 2.09 4.2 0.35
  36/9 0.06 x 2.11 6.4 0.34
  36/9 0.09 x 2.14 9.6 0.32
VecoFlux 70/10 0.04 x 2.18 9.6 0.33
  70/10 0.06 x 2.20 14.4 0.33
  70/10 0.09 x 2.23 21.3 0.33
VecoFlux-Special 79/17 0.04 x 1.19 9.9 0.33
  79/17 0.06 x 1.20 15.0 0.33
  79/17 0.09 x 1.21 22.7 0.33
VecoLife 45/8 0.06 x 2.65 9.0 0.42
  45/8 0.09 x 2.68 13.5 0.42

Sugar screens for continuous centrifuges

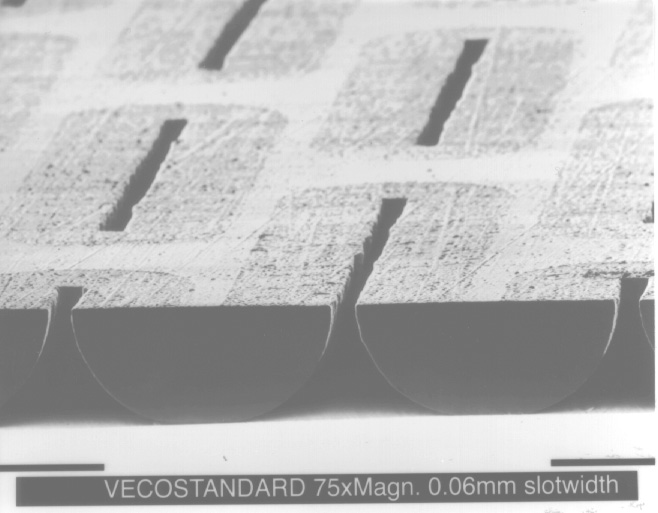

Sugar screen - VecoStandard



VecoStandard sugar screens are used for current operations.

Their characteristics are:

  • Perfectly smooth (mirror smooth) working surfaces in pure nickel, without burrs or bumps, covered with a chrome layer for longer service life. The sugar crystals easily migrate to the top of the screen and break up less.
  • Tapered cross-section holes to reduce fouling and clogging.
  • Slits laid out radially in multiple circular arc segments in the direction of the movement of the sugar crystals, providing optimal purity at maximum throughput.
  • Dimensions in compliance with the specifications of centrifuge manufacturers.

Compare the specifications of the different ranges

VecoFlux sugar screens



VecoFlux sugar screens are recognised for their high efficiency in terms of throughput and better separation of the grains.

Thanks to a high open area (twice higher than standard screens with the same slit width (mesh)) and greater thickness, VecoFlux offers better purification and reduced consumption of fresh water.



VecoFlux is available with slit widths of 0.09 mm or 0.06 mm to increase the throughput of the centrifuge by up to 150% compared to the standard value.

They can also be used with a slit of 0.04 mm in the massecuite of the bottom product (3rd jet or Sugar C) to capture the smallest sugar crystals without loss of throughput.

Compare the specifications of the different ranges

VecoFlux - Special sugar screens



Sugar screens of the VecoFlux-Special range have the highest open area, the highest throughput and/or the lowest purity of the final molasses.

The new layout of slit zones to increase the service life, VecoFlex range even though it is already considerable.



VecoFlux-Special is available with slit widths of 0.09 mm or 0.06 mm to increase the throughput of the centrifuge by up to 170% compared to the standard value.

They can also be used with a slit of 0.04 mm in the massecuite of the bottom product (3rd jet or Sugar C) to capture the tiniest sugar crystals without loss of throughput. This yields molasses with a purity up to 2 points less and obvious and very substantial financial gains.

Compare the specifications of the different ranges

VecoLife sugar screens



VecoLife sugar screens have a service life up to twice as long as standard screens.

The increase in thickness greatly reduces the deformation of the working screens, this being the main cause of deterioration of the chrome plating and their embedding in the support screen (basket) in thick metal wire.

Compare the specifications of the different ranges
